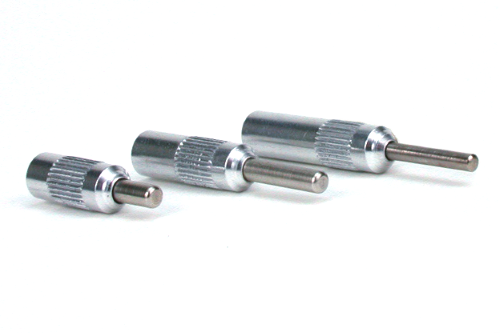

Aluminum Body Retractable Guide Pins

1. Products
2. Retractable Guide Pins
3. Aluminum Body Retractable Guide Pins

• Press-fit design: knurled body for friction fit.
• Retractable pin contained entirely within body; does not extend through body upon compression.
• Durable stainless steel interior spring.
• Three pin materials available:
  • Nickel plated steel
  • Delrin
    • Excellent tensile strength
    • Temperature Range = -20 to +180°F
    • FDA Compliant
  • PEEK
    • Excellent tensile strength
    • Temperature Range = -20 to +480°F
    • FDA Compliant
• Pins available in two styles: Standard Radius Pin and Tapered Pin.

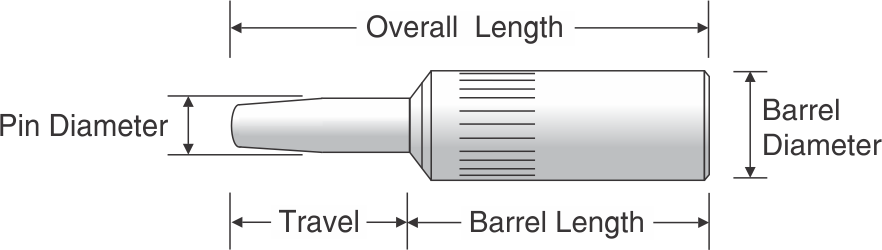

• See reference drawing here.

Aluminum Retractable Guide Pin Sizes
